Alpgen Time and Size Studies

Goal

To measure the time and size performance of ALPGEN runs (grid production, event production) in a typical CMS T2 farm, like SPRACE.

Modus Operandi

IMPORTANT NOTE: do everything in a subdirectory of /hdacs, so that you have more working space and the WNs can see that space.

  1. Setup a CMSSW area: cmsrel CMSSW_2_2_9; cd CMSSW_2_2_9/src; cmsenv
  2. Use whatever method to be able to CVS code from CERN.
  3. Get the ALPGEN grids: cvs co -r CMSSW_2_2_9 GeneratorInterface/AlpgenInterface
  4. Setup CONDOR: . /OSG/setup.sh
  5. Use the script to submit ALPGEN jobs to SPRACE

The script takes three arguments: the config file for ALPGEN, the name of the ALPGEN executable you want to run, and the name of the grid. It is the user's task to make sure all of those are coherent among themselves! For instance, if you want to run ttbar+4 jets, at 40 GeV threshold, starting from an already existing grid, you should use

python sprace_ALPGEN_submit.py input /OSG_app/app/cmssoft/cms/slc4_ia32_gcc345/external/alpgen/213-cms2/bin/2Qgen GeneratorInterface/AlpgenInterface/data/ttbar4j_40GeV.grid2

where input is of the form

1          ! generation mode
ttbar4j_40 ! string labeling the output files
0          ! start with: 0=new grid, 1=previous warmup grid, 2=previous generation grid
0 0        ! N(events)/iteration and N(iter's) for initial grid optimiz. Use 0 0 if starting from existing grid
50000000   ! number evts to generate
*** The above 5 lines provide mandatory inputs for all processes
*** (Comment lines are introduced by the three asteriscs)
*** The lines below modify existing defaults for the hard process under study
*** For a complete list of accessible parameters and their values,
*** input 'print 1' (to display on the screen) or 'print 2' to write to file
njets 4
ebeam 5000
ih2 1
ickkw 1
ptjmin 40
etajmax 5
drjmin 0.7
mt 175
ihvy 6
itdecmode 7

Tasks

  1. Linearity with number of events: Check running times and event sizes for ttbar+4 jets at 40 GeV threshold, starting from already-existing grids, asking for different number of events. DONE
  2. Independence of linearity wrt to jet multiplicity: Check running times and event sizes for ttbar+2 jets at 40 GeV threshold, starting from already-existing grids, asking for different number of events. DONE
  3. Time as function of jet multiplicity: Check running times and event sizes for ttbar+1,3,4 jets, at 40 GeV threshold, starting from already existing grids, asking for 1000000 events. DONE
  4. Time as function of matching threshold: Check running times and event sizes for ttbar + 2 jets, at 20, 30, 40, 50, 60 GeV threshold, starting from already existing grids, asking for 1000000 events. DONE

Tools

  • Standard location of ALPGEN executables (from CMSSW): $CMS_PATH/slc4_ia32_gcc345/external/alpgen

(there are many subdirectories with different versions, pick the latest one).

Results

For reference, these jobs were processed in this hardware configuration, using condor 7.0.3 as batch scheduler and Scientific Linux 4.6. Also, ''events'' in this context means weighted events.

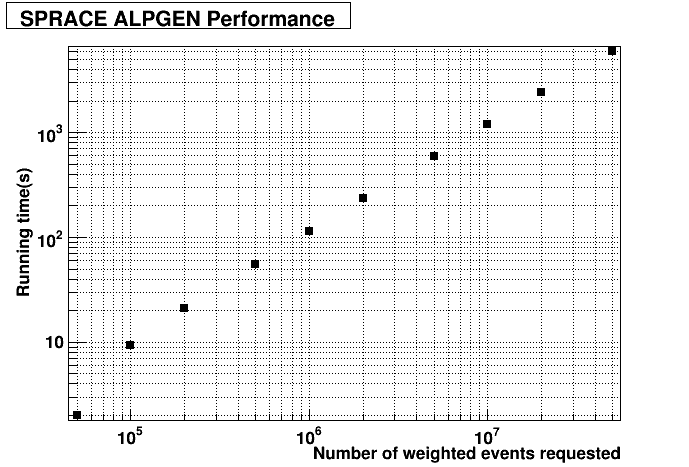

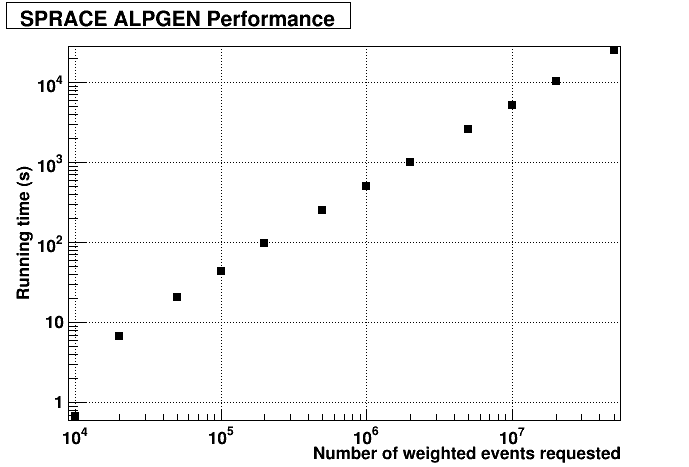

Linearity / independence with respect to jet multiplicity

events average time (s) standard deviation size(b) events unweighted lum (pb^(-1)
1000 0.000 0.000 1653 29 0 -
2000 0.000 0.000 2394 42 1 0.0894107602
5000 0.000 0.000 3420 60 6 0.46386027
10000 0.000 0.000 6612 116 4 0.28711817
20000 0.000 0.000 9804 172 3 0.138082356
50000 2.000 1.414 17157 301 8 0.393754979
100000 9.333 1.700 24282 426 9 0.28055974
200000 21.000 2.944 30153 529 1 0.0138315699
500000 55.000 2.160 34941 613 4 0.0630326254
1000000 113.667 3.300 45372 796 7 0.115740976
2000000 234.667 3.771 64467 1131 11 0.174470775
5000000 593.000 2.160 104253 1829 18 0.332504291
10000000 1199.667 2.643 167523 2939 56 1.15591618
20000000 2411.000 5.099 265050 4650 74 1.46726676
50000000 6015.667 21.714 513000 9000 143 2.75454531

events average time (s) standard deviation size(b) events
1000 0.000 0.000 1653 29
2000 0.000 0.000 3021 53
5000 0.000 0.000 5757 101
10000 0.667 0.943 6099 107
20000 6.667 1.247 7125 125
50000 20.667 2.494 9975 175
100000 43.667 2.055 15333 269
200000 96.333 3.399 21090 370
500000 248.667 2.867 29412 516
1000000 498.667 3.301 36765 645
2000000 1013.667 1.687 47652 836
5000000 2562.000 33.978 69711 1223
10000000 5095.750 37.456 90288 1584
20000000 10149.250 56.167 121866 2138
50000000 25425.750 192.689 195567 3431

Conclusion: the running time is linear with the number of events ASKED, but not with the number of events actually produced.

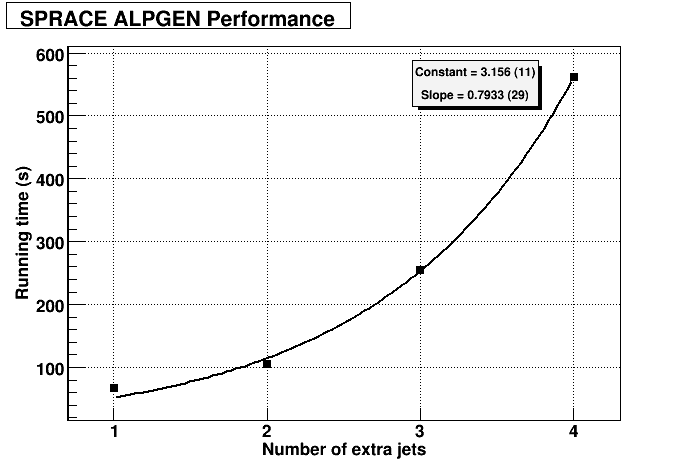

Time as function of jet multiplicity

jets average time (s) size (b) events
1 66 178410 3130
2 105.333 45372 796
3 253.667 28614 502
4 561.667 36765 645

Conclusion: the running time is exponential with the number of extra jets asked.

Time as function of matching threshold

ptjmin (GeV) average time (s) size (b) events
20 93 18525 325
30 93.667 24396 428
40 114.333 45372 796
50 115.667 48564 852
60 96.667 48393 849

Conclusion: the running time is approximately independent of the matching threshold.

-- ThiagoTomei - 05 Jun 2009
