-- JoseRuiz - 25 Jul 2012

Z'→ W+W-→l+l-MET

Monte Carlo study

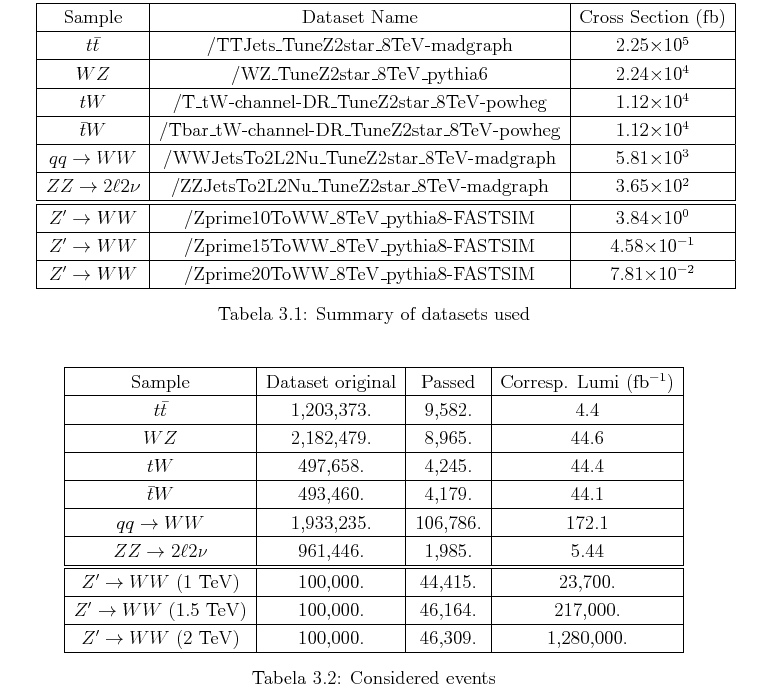

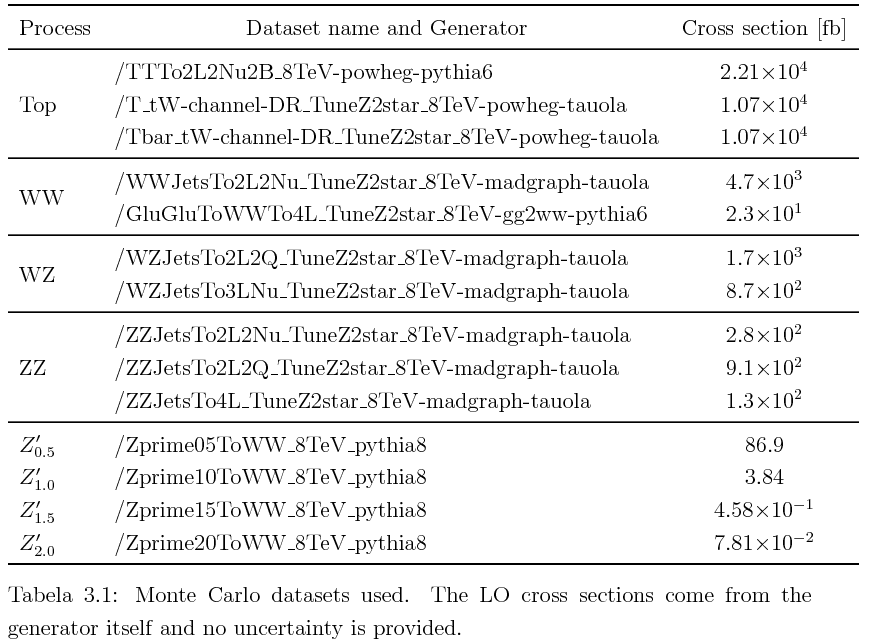

  • MC samples used in the analysis:

We select events with one electron and one muon, oppositely charged, requiring

  • process.selectedPatMuons.cut = 'pt>20. & abs(eta)<2.4 & isPFMuon & (isGlobalMuon|isTrackerMuon) & dB<0.02 & (caloIso+trackIso)/pt<0.15'
  • process.selectedPatElectrons.cut = 'pt>20. & abs(eta)<2.5 & hadronicOverEm<0.05 & (caloIso+trackIso)/pt<0.15'

The events passing the selection requirements are used to construct a transverse mass.

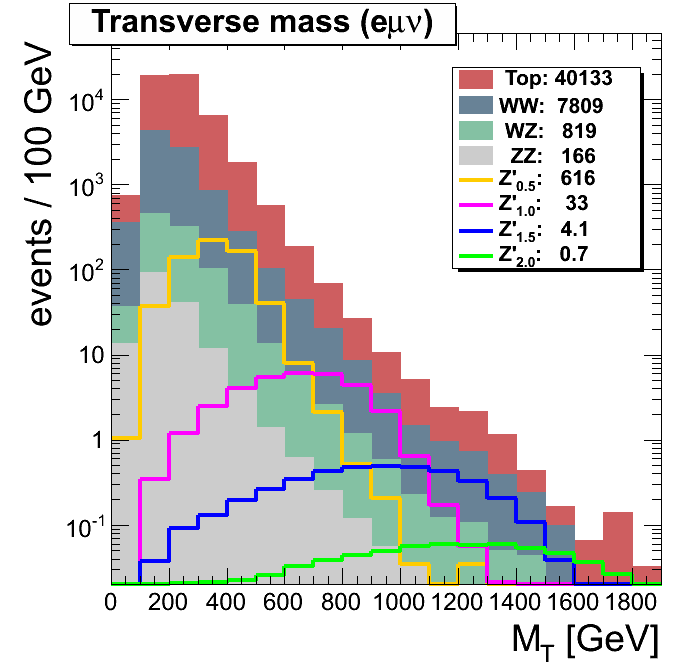

  • Transverse mass distribution for signal and background:

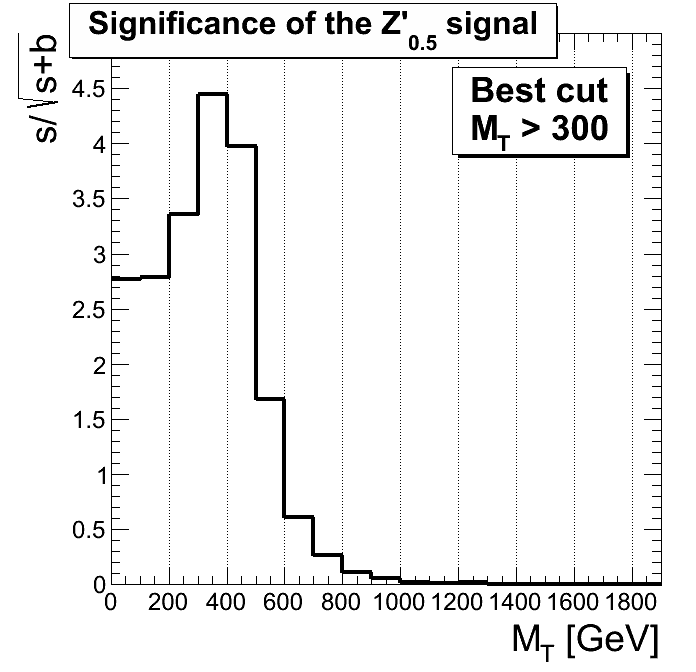

  • Significance of the signal (Z' 0.5 TeV) as a function of the invariant transverse mass:

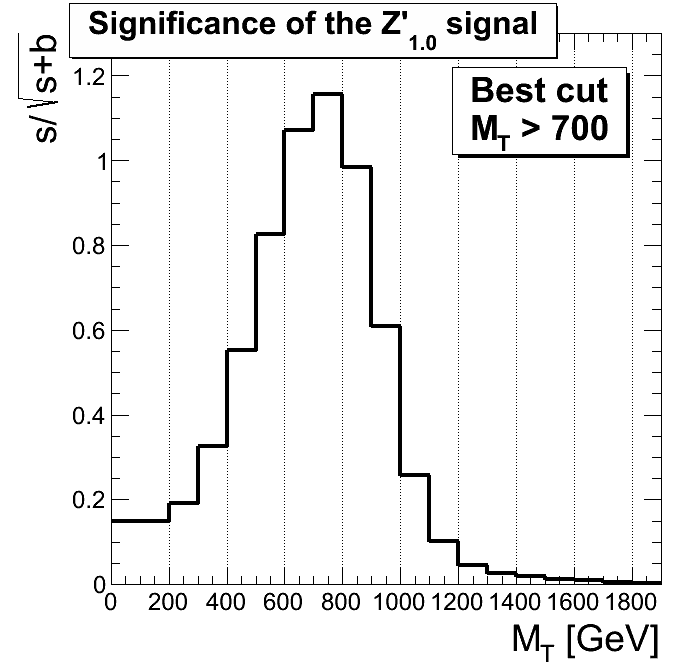

  • Significance of the signal (Z' 1.0 TeV) as a function of the invariant transverse mass:

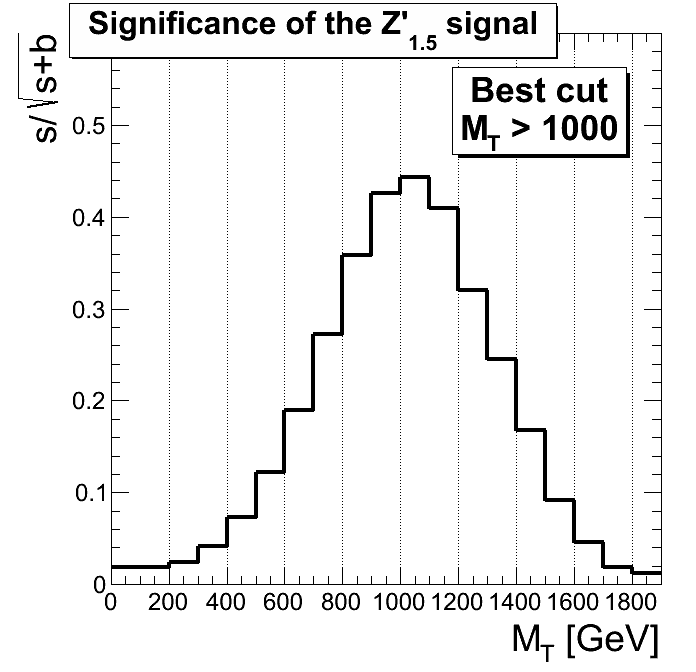

  • Significance of the signal (Z' 1.5 TeV) as a function of the invariant transverse mass:

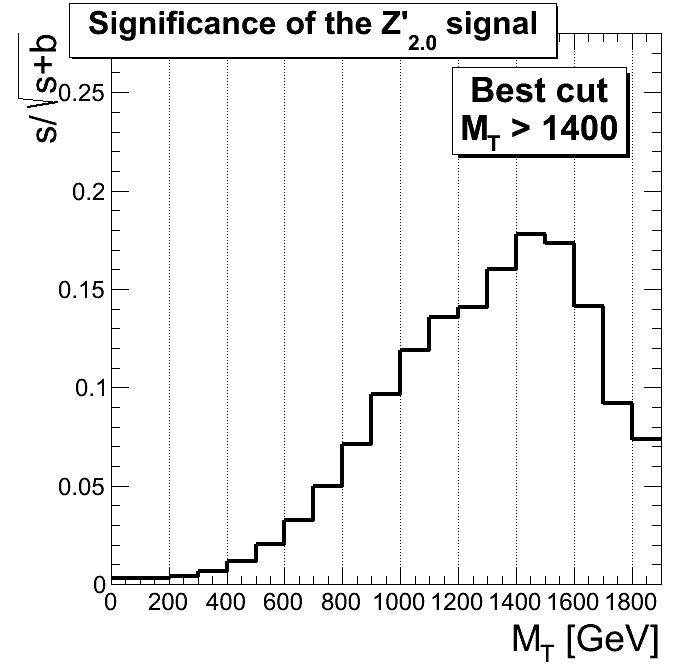

  • Significance of the signal (Z' 2.0 TeV) as a function of the invariant transverse mass:

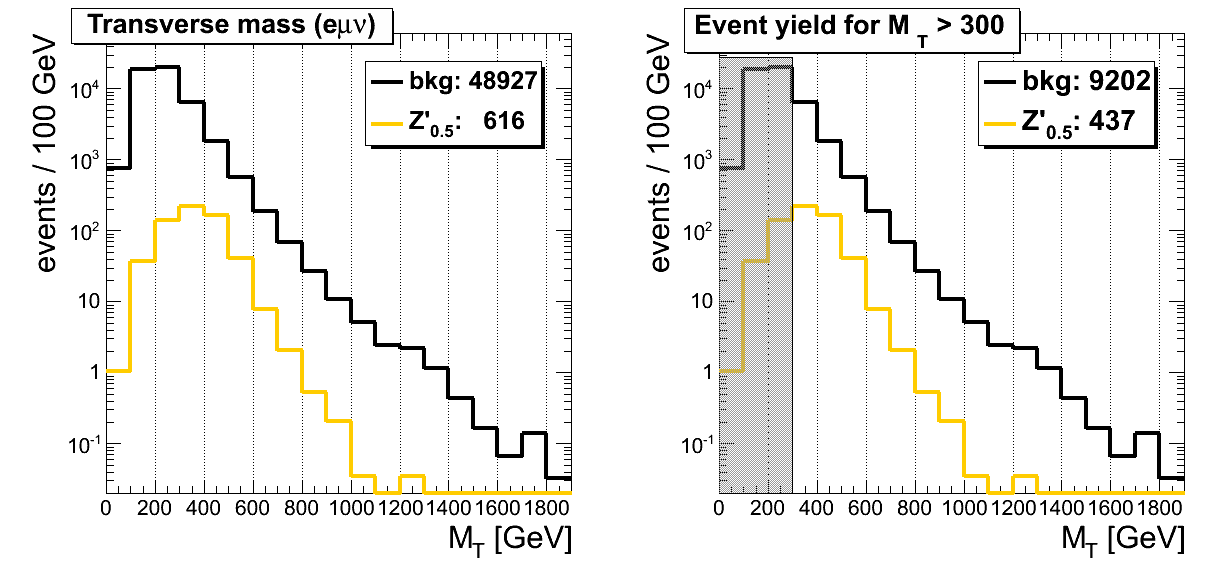

  • Event yield after (right) and before (left) applying the cut in the invariant transverse mass:

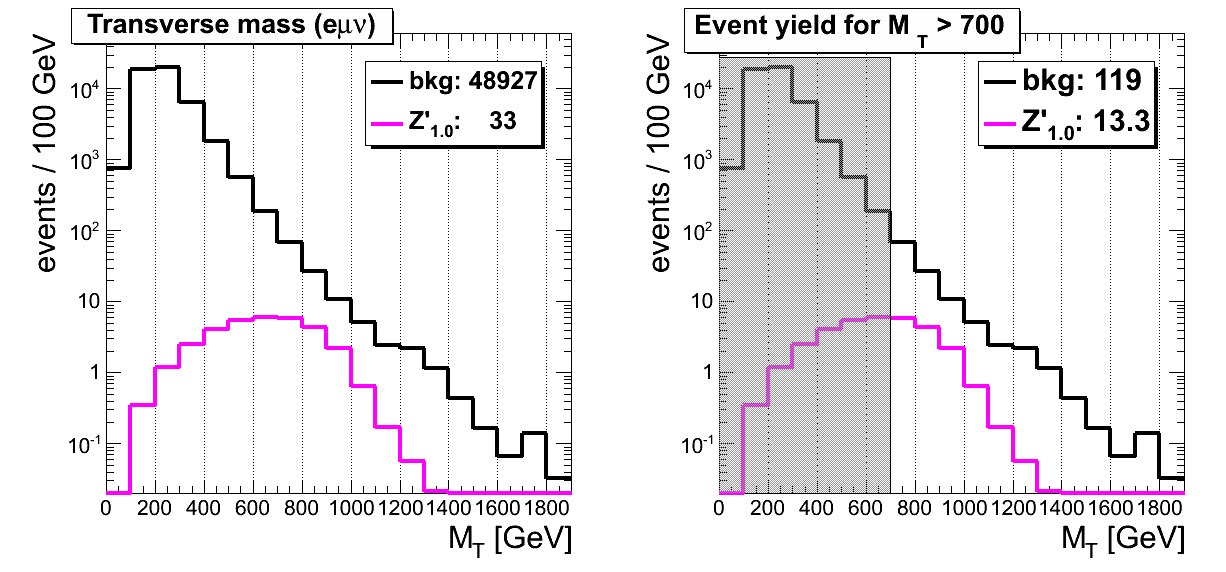

  • Event yield after (right) and before (left) applying the cut in the invariant transverse mass:

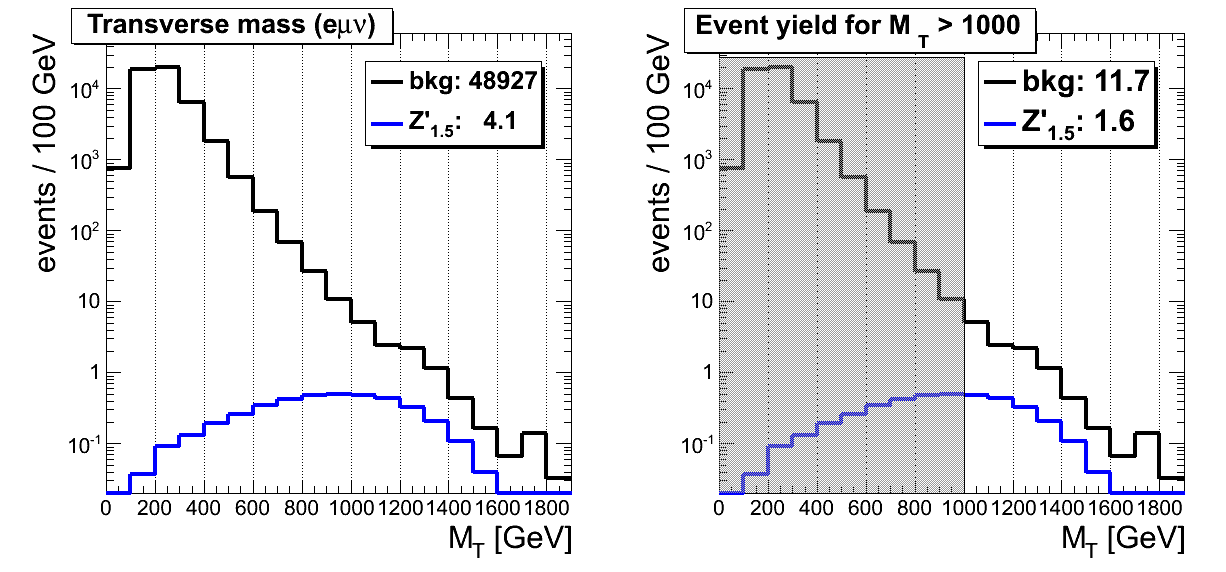

  • Event yield after (right) and before (left) applying the cut in the invariant transverse mass:

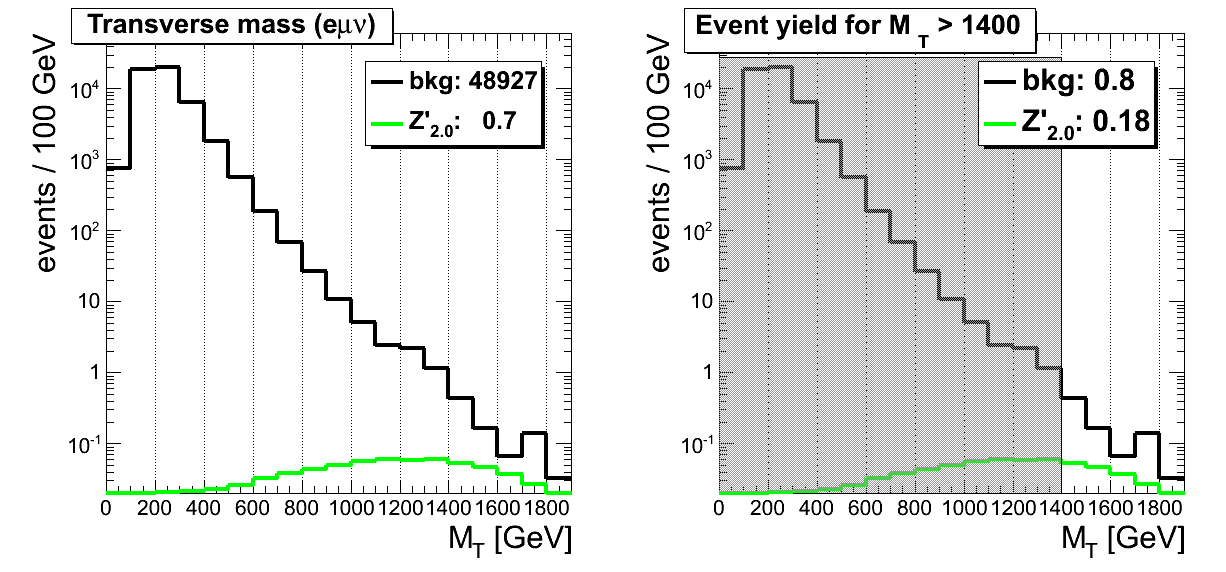

  • Event yield after (right) and before (left) applying the cut in the invariant transverse mass:

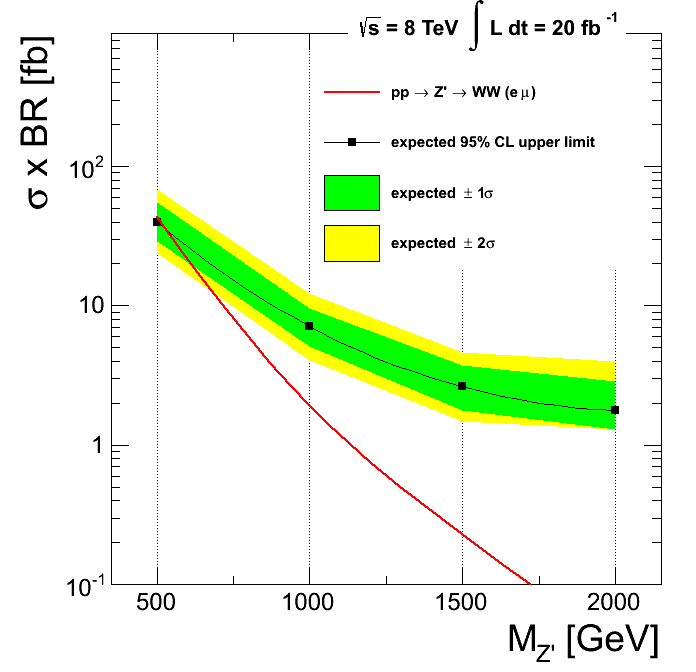

  • Expected 95% CL upper limit on the cross section:

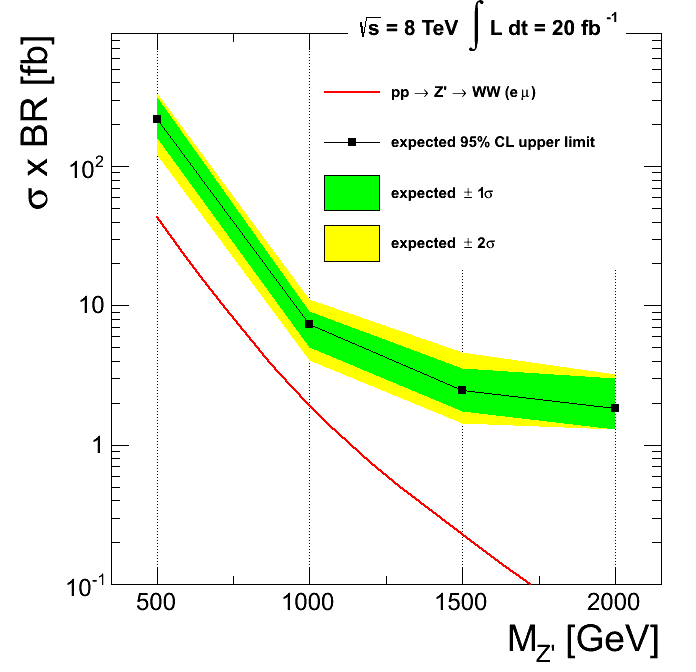

  • Expected 95% CL upper limit on the cross section assuming 10% of error on the number of generated events:

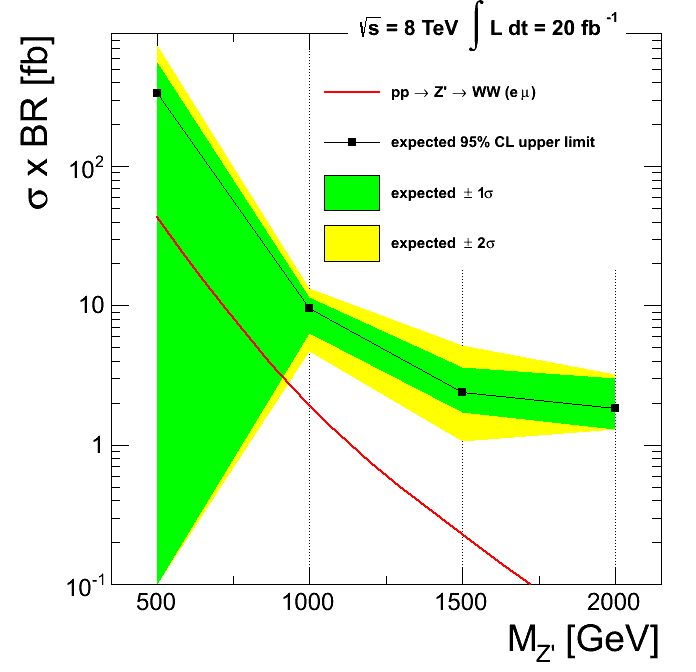

  • Expected 95% CL upper limit on the cross section assuming 20% of error on the number of generated events:

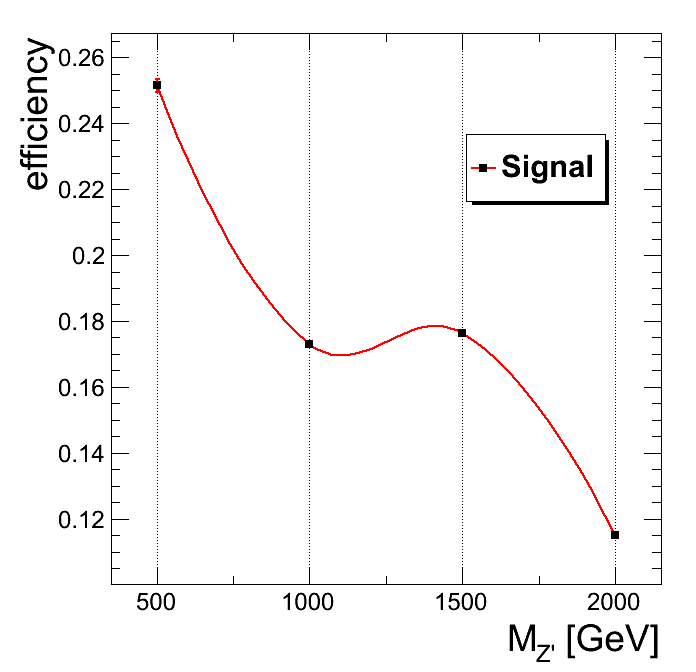

  • Efficiency (basic selection X efficiency of the M-T cut) as a function of the Z' mass for signal:

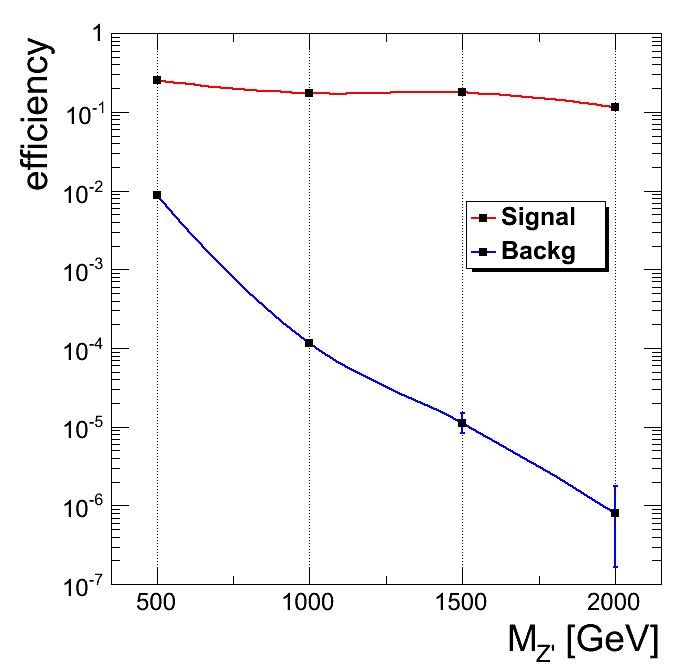

  • Efficiency (basic selection X efficiency of the M-T cut) as a function of the Z' mass:

Other channels

For the Z'→ W+W-→ljjMET channel see

/twiki/bin/view/Main/ZprimeToWWToljjMETAnalysis
