Multidimensional HBT analysis for pp @ 2.76TeV

This page describes the extraction of the signal of Bose-Einstein correlations of charged pion candidates i;e enhancement of pairs of same-charge particles with very small relative momentum from the sample of proton-proton collisions at 2.76TeV recorded by the CMS detector at LHC in 2013

Working Directory: /home/sdogra/pp276tev/ and /afs/cern.ch/work/s/sdogra/pp_min_bias/CMSSW_5_3_8_patch3

Data Set Used

Data: /PPMinBias/Run2013A-PromptReco-v1/RECO

Monte Carlo: /MinBias_TuneZ2_2760GeV_pythia6/HiWinter13-STARTHI53_V26-v1/GEN-SIM-RECO

Monte Carlo: /MinBias_TuneZ2Star_2760GeV_pythia6/HiWinter13-STARTHI53_V26-v1/GEN-SIM-RECO

Monte Carlo: /MinBias_TuneD6T_2760GeV_pythia6/HiWinter13-STARTHI53_V26-v1/GEN-SIM-RECO

Event Selection:

Trigger Used :HLT_PAZeroBiasPixel_SingleTrack_v1

Event Filters : pileupVertexFilterCut_ppGplus*PAcollisionEventSelection

Track Selection

  • Track Quality Cuts
  • ndof_cut ≥ 5;
  • nchi2_cut ≤ 5 ;
  • dxy_cut < .15;
  • rmin_cut < 20. ;
  • rgen_cut < 20. ;
  • pt_cut ≥ 0.2 ;
  • eta_cut ≤ |2.4| ;

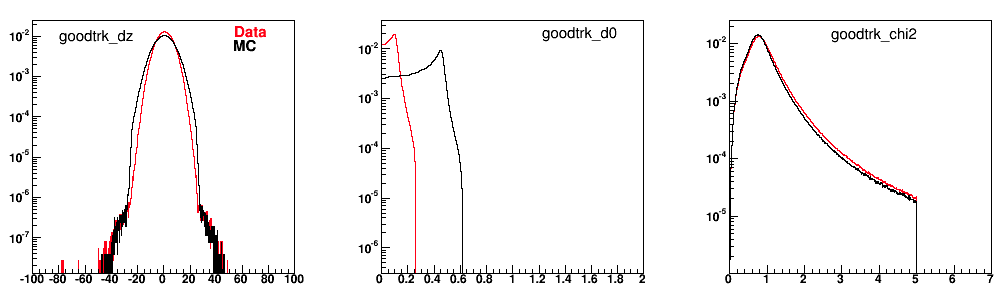

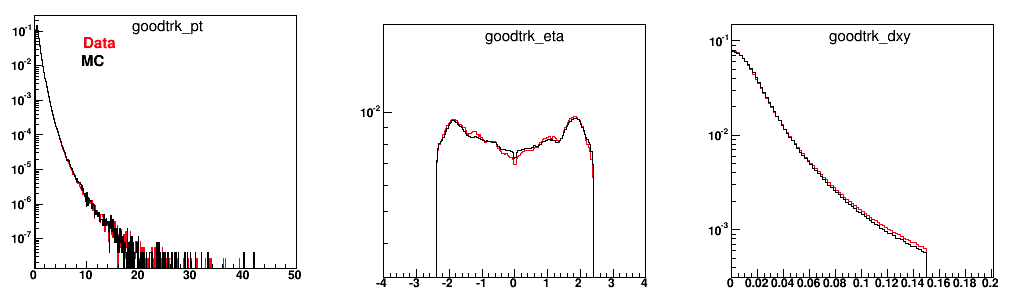

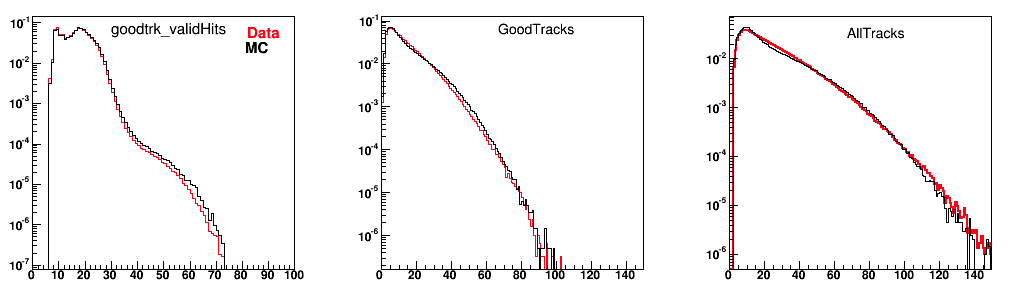

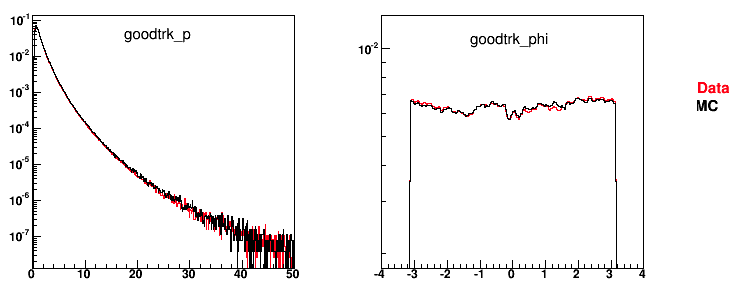

  • Track Quality Plots:








One Dimensional

Single Ratio

Double Ratio

Two Dimensional

Single Ratio

Double Ratio

Three Dimensional

<!--
* Set DENYTOPICVIEW = TWikiGuest
* Set ALLOWTOPICVIEW = HeavyIonGroup,ThiagoTomei, SpraceGuest
-->

-- SunilDogra - 2013-03-20
